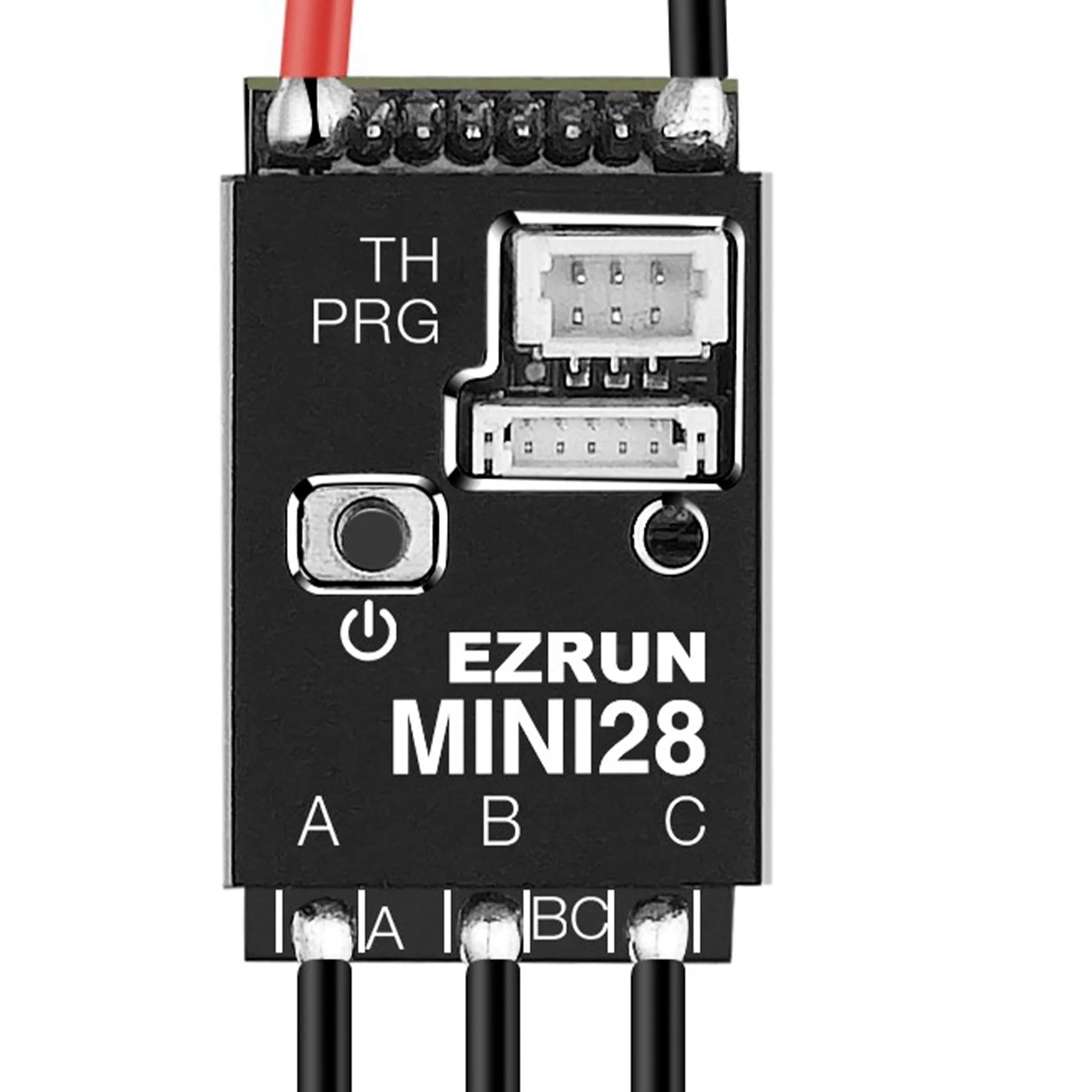

Hobby Wing EZRUN Mini28 ESC

Part Number: 30101300

Purpose-Built for 1/28th Scale Racing The Mini28 ESC combines advanced software and hardware specifically engineered for 1/28th scale competitive racing. With newly developed programmable parameters optimized for micro-scale performance, this ESC delivers championship-level control in the smallest package.

Compact & Lightweight Design Measuring just 22mm × 14mm and weighing only 5g, the Mini28 ESC is exceptionally compact. Its low-profile design facilitates easy soldering while minimizing unnecessary modifications—a critical advantage in 1/28th scale racing where every gram matters.

High Performance with Efficient Cooling The full-alloy heat sink provides exceptional thermal management, keeping operating temperatures in the optimal range even during aggressive driving. Peak output current reaches 30A, delivering impressive power for its size.

Dual Operating Modes The ESC offers two competition-ready modes:

Zero-Timing ("Blinky") Mode – For spec racing classes requiring stock timing
Modified Mode – Allows adjustable turbo timing for maximum performance in open classes
Championship-Proven Programming Featuring 26 adjustable parameters including PWM frequency, brake frequency, throttle curve, boost, turbo, and more, the Mini28 inherits its software architecture from Hobbywing's World Championship-winning XR10 Pro series. This extensive programmability enables precise tuning to match your driving style and track conditions. Warning: Incorrect settings may damage your motor and ESC. Always consult the manual before making changes.

Integrated High-Voltage BEC The built-in switching BEC delivers up to 8A peak current with selectable 6V or 7.4V output, providing ample power for modern high-torque digital servos.

Wireless Programming via Bluetooth Connect seamlessly with Hobbywing's OTA Bluetooth module and smartphone app for convenient parameter adjustment and firmware updates—no programming card required.

Technical Specifications:

Application: 1/28th and 1/26th scale vehicles
Continuous/Peak Current: 30A / 80A
Motor Compatibility: Sensored and sensorless brushless motors up to 1626 size
Battery Support: 2S LiPo
BEC Output: 6V/7.4V adjustable, 3.5A peak (switch-mode)
Dimensions: 22.7 × 14.2 × 11.8mm
Weight: 5g (without wires)
Programming: Via throttle cable port or OTA Bluetooth module
